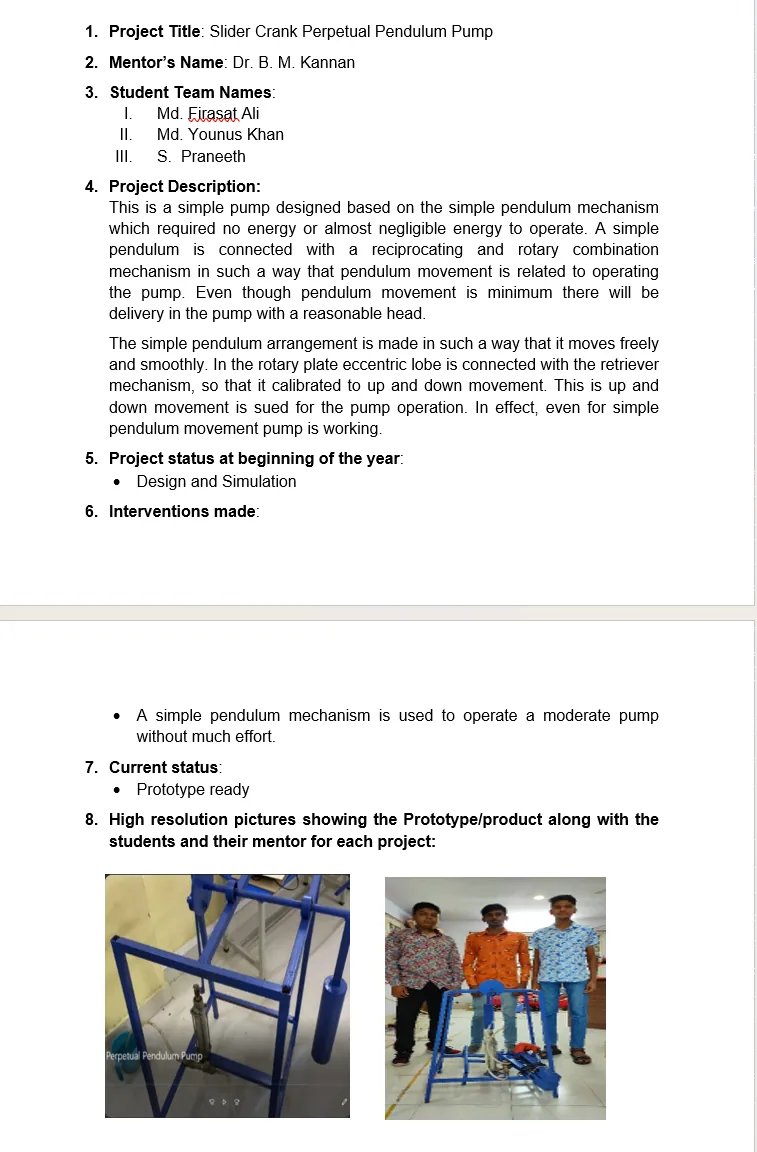

Project Description
The project is a simple pump based on a pendulum mechanism that requires little input energy to operate.
The pendulum is connected to a combination of reciprocating and rotary mechanisms so that even relatively small pendulum movement can support water delivery at a reasonable head.
An eccentric lobe on a rotary plate calibrates the up-and-down movement used for the pumping operation.
Development Journey
Project status at the beginning
Design and simulation.
Interventions made
A simple pendulum mechanism for operating a moderate pump with limited effort.
Current status
Prototype ready
